1. Product Description
The ABB REF615A_E HAFAABAAABE1BCA1XE is a high-performance protective relay designed for medium and high-voltage power systems, delivering advanced protection, control, and monitoring capabilities. As a key component of ABB’s REF600 series, the REF615A_E HAFAABAAABE1BCA1XE is engineered to enhance the reliability and efficiency of electrical networks by integrating innovative protection algorithms, precise measurement functions, and seamless digital communication interfaces.
This model is ideal for applications requiring robust protection against overcurrent, earth faults, voltage disturbances, and other power system anomalies. The REF615A_E HAFAABAAABE1BCA1XE stands out for its user-friendly configuration tools, compatibility with modern substation automation systems, and compliance with international standards, making it a trusted choice for both new installations and retrofitting projects.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | Auxiliary supply: AC/DC 85–265V |
| Current Inputs | Phase currents: 1A or 5A (selectable) |
| Voltage Inputs | Phase voltages: 100V or 230V (AC) |
| Communication Interfaces | Ethernet (IEC 61850, Modbus TCP), RS-485 (Modbus RTU), USB |
| Protection Functions | Overcurrent, earth fault, distance protection, auto-reclosing, synchronism check |
| Frequency Range | 45–65 Hz |
| Operating Temperature | -25°C to +70°C (with derating) |
| Dimensions | 192 mm (W) x 210 mm (H) x 150 mm (D) |
| Certifications | IEC 61850, IEC 60255, CE, RoHS |

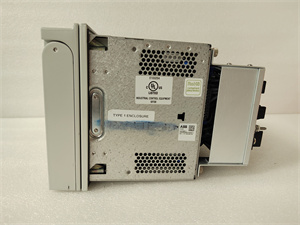

REF615A_E HAFAABAAABE1BCA1XE
3. Advantages and Features
The REF615A_E HAFAABAAABE1BCA1XE offers several distinct advantages, starting with its advanced protection accuracy. Its digital signal processing (DSP) technology enables rapid fault detection within milliseconds, minimizing downtime and preventing cascading system failures. The relay also features a modular design, allowing easy integration with existing SCADA systems and simplifying maintenance procedures.
A key feature is its compliance with the IEC 61850 standard, which enables seamless interoperability with intelligent electronic devices (IEDs) in smart substations. This reduces configuration complexity and enhances data exchange for real-time monitoring and remote control. Additionally, the relay’s rugged construction and wide operating temperature range ensure reliable performance in harsh industrial environments, backed by a mean time between failures (MTBF) of over 200,000 hours.
4. Application Areas and Case Studies
The REF615A_E HAFAABAAABE1BCA1XE is widely used in power transmission and distribution networks, industrial substations, renewable energy plants, and critical infrastructure sectors such as utilities and manufacturing. Its versatility makes it suitable for protecting transformers, feeders, motors, and generators.
Case Study: A major utility company in Europe deployed the REF615A_E HAFAABAAABE1BCA1XE to modernize a 66kV substation. By replacing legacy electromechanical relays, the project achieved a 30% reduction in fault response time and improved system visibility through real-time data analytics. The relay’s IEC 61850 compatibility also streamlined integration with the utility’s existing substation automation platform, reducing commissioning time by 20%.
5. Competitive Landscape Comparison
When compared to similar protective relays on the market, the REF615A_E HAFAABAAABE1BCA1XE distinguishes itself through its combination of advanced protection functionalities and ease of integration. Unlike some alternatives, it offers a built-in web interface for intuitive configuration, eliminating the need for additional software tools. Its robust cybersecurity features, such as secure authentication and data encryption, also provide an edge in protecting against modern cyber threats, a critical consideration for digital substations.
REF615A_E HAFAABAAABE1BCA1XE
6. Selection Recommendations
When selecting the REF615A_E HAFAABAAABE1BCA1XE or similar relays, consider the following:
- System Voltage and Current Ratings: Ensure compatibility with your network’s voltage (100V/230V) and current (1A/5A) requirements.
- Communication Needs: Prioritize the relay’s support for your substation’s communication protocol (e.g., IEC 61850 for smart grids or Modbus for legacy systems).
- Environmental Conditions: Verify the operating temperature range and 防护等级 (IP rating) if deployed in extreme climates or dusty environments.
- Scalability: Assess whether the relay’s modular design can accommodate future system expansions or upgrades.
7. Usage and Installation Notes
- Installation: Always disconnect power before installing or servicing the relay. Follow ABB’s guidelines for proper grounding to prevent electromagnetic interference (EMI).
- Configuration: Use the built-in web interface or ABB’s Relion® Manager software for parameter setup. Validate settings with a simulated fault test before commissioning.
- Maintenance: Schedule regular health checks via the relay’s self-diagnostic functions. Replace internal batteries every 10 years (as per manufacturer recommendations) to maintain clock and configuration memory.
- Safety Compliance: Ensure installation complies with local electrical codes and safety standards (e.g., IEC 61010 for electrical safety).
