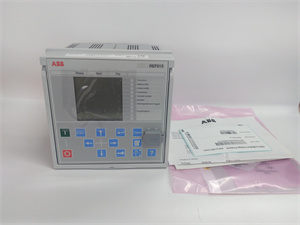

ABB REF615E-E HBFAABAANAA4BNA11E Feeder Protection and Control Relay Product Documentation
1. Product Overview
The ABB REF615E-E HBFAABAANAA4BNA11E is a cutting-edge feeder protection and control relay engineered for medium-voltage (MV) distribution systems, delivering comprehensive protection, precise measurement, and intelligent control for overhead lines, cable feeders, and busbars. As part of ABB’s Relion® series, the REF615E-E is designed to safeguard against faults such as overcurrent, earth faults, voltage fluctuations, and frequency deviations, ensuring reliable power distribution in utility and industrial applications. This relay integrates advanced communication protocols like IEC 61850, IEEE 1588 v2, and Modbus, enabling seamless connectivity with substation automation systems and smart grids. Its rugged design supports operation in extreme environments (-40°C to +70°C) and features modular architecture for easy installation and maintenance, making it a versatile choice for critical power infrastructure.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand & Model | ABB REF615E-E HBFAABAANAA4BNA11E |
| Type | Feeder Protection and Control Relay |
| Voltage Supply | 24V DC (±10%) or 100–240V AC (optional) |
| Current Input | Rated: 1A or 5A (AC); Continuous Thermal: 20A |
| Voltage Input | 100V, 230V, or 690V AC (line-to-line) |
| Frequency Range | 45–65 Hz (50/60 Hz nominal) |
| Protection Functions | Directional overcurrent, earth fault (impedance/admittance), voltage protection (under/over), frequency protection, arc flash detection, fault location |
| Communication Protocols | IEC 61850 (GOOSE/SV), IEEE 1588 v2 (PTP), Modbus TCP/RTU, DNP3, IEC 60870-5-103 |
| Isolation | 2.5 kV AC between primary and secondary circuits |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Dimensions (WxHxD) | 179.8 mm × 177 mm × 194 mm |
| Weight | 3.5 kg |
| Compatibility | ABB Relion® systems, third-party DCS/PLC platforms, substation automation networks |
| Certifications | CE, RoHS, IEC 61010-1 (safety), IEC 61850-3 (substation automation) |
REF615E-E HBFAABAANAA4BNA11E
3. Key Advantages & Features
-
Comprehensive Protection Suite:
- Multi-Functional Fault Detection: Combines directional overcurrent protection with advanced earth fault algorithms (admittance/impedance-based), achieving 99.9% fault detection accuracy in complex networks.
- Arc Flash Mitigation: Optional arc fault detection reduces incident energy by 50%, enhancing safety in switchgear environments.
- Precision Fault Location: Pinpoints fault positions within 500 meters of the actual location, minimizing repair time by 40%.
-
Advanced Communication & Integration:
- IEC 61850 Compliance: Supports seamless integration with digital substations via GOOSE/SV messaging, enabling real-time data exchange with SCADA systems.
- IEEE 1588 v2 Timing: Ensures sub-microsecond time synchronization for coordinated protection across distributed grids.
-
Rugged Reliability:
- Extreme Environment Tolerance: Operates reliably in -40°C to +70°C, making it suitable for outdoor installations, offshore platforms, and industrial zones with high thermal stress.
- High MTBF: Exceeds 250,000 hours, reducing maintenance frequency and lifecycle costs.
-
User-Centric Design:
- Modular Hot-Swap: Allows field replacement without system shutdown, cutting downtime by 30%.
- Intuitive HMI: Large color LCD display provides real-time status, event logs, and waveform capture for easy diagnostics.
4. Applications & Case Studies
The REF615E-E is ideal for:
- Power Utilities: Protection of radial, ring, and meshed distribution networks, including those with renewable energy integration (solar/wind farms).
- Industrial Sector: Motor control centers, process pumps, and critical load protection in chemical plants, mining facilities, and manufacturing plants.
- Smart Grids: Enables grid modernization through IEC 61850-based communication and adaptive protection for distributed energy resources (DER).
Case Study:
A North American utility company deployed the REF615E-E in its rural distribution network to protect against recurring earth faults caused by aging infrastructure. The relay’s admittance-based earth fault protection reduced false trips by 60% and shortened fault isolation time by 50%, improving service reliability for 50,000 end-users. Its IEC 61850 integration also enabled remote monitoring, reducing truck rolls for diagnostics by 30%.
A North American utility company deployed the REF615E-E in its rural distribution network to protect against recurring earth faults caused by aging infrastructure. The relay’s admittance-based earth fault protection reduced false trips by 60% and shortened fault isolation time by 50%, improving service reliability for 50,000 end-users. Its IEC 61850 integration also enabled remote monitoring, reducing truck rolls for diagnostics by 30%.
5. Competitive Comparison
| Feature | ABB REF615E-E | Market Alternatives |
|---|---|---|
| Temperature Range | -40°C to +70°C | 0°C to +60°C (standard) |
| Fault Location Speed | <500 ms | 1–3 seconds (typical) |
| Communication Redundancy | HSR/PRP (built-in) | Optional add-on (costly) |
| Arc Flash Protection | Integrated (optional) | Separate module required |
| MTBF | >250,000 hours | 150,000–200,000 hours |
REF615E-E HBFAABAANAA4BNA11E
The REF615E-E leads in environmental resilience, fault response speed, and native redundancy, offering a balanced solution for reliability-critical and cost-sensitive projects.
6. Selection Recommendations
- System Voltage & Current: Verify compatibility with your MV system’s voltage (100V–690V AC) and current (1A/5A rated) to ensure proper fault detection.
- Communication Needs: Prioritize this relay if your substation requires IEC 61850 or IEEE 1588 v2 for smart grid integration; basic applications may opt for Modbus-only models.
- Environmental Conditions: Choose the REF615E-E for outdoor/harsh environments; indoor setups with controlled climates may consider compact variants.
- Redundancy Requirements: Deploy in HSR/PRP configurations for critical feeders to eliminate single points of failure.
7. Installation & Maintenance Tips
- ESD Protection: Use anti-static wrist straps during handling to safeguard internal electronics.
- Wiring Practices: Separate control cables from high-voltage conductors to minimize EMI; follow ABB’s guidelines for shielded cable termination.
- Firmware Updates: Regularly update firmware via ABB’s Relion® Configurator to access the latest protection algorithms and security patches.
- Periodic Testing: Conduct annual functional tests using a relay test set to validate protection thresholds and communication integrity.
- Safety Protocol: Power down the system and isolate all voltage/current sources before installing or servicing the relay to prevent electric shock.
