Description
1. Product Description
The Triconex 3708E is a high-performance Analog Input Module from Triconex, a leading brand in safety-critical industrial automation. Engineered for the Tricon® series of safety systems, the 3708E is designed to provide precise and reliable analog signal acquisition in harsh environments, making it ideal for industries such as oil and gas, chemical processing, and power generation. This module supports multiple signal types, including voltage (0–10V), current (4–20mA), thermocouples, and RTDs, ensuring flexibility in the most demanding applications.
The Triconex 3708E features 8 isolated channels with 16-bit resolution, delivering high accuracy and noise immunity for critical process measurements. Its triple modular redundancy (TMR) architecture ensures fault tolerance by voting on three independent signal paths, reducing single-point failures. The module’s hot-swappable design allows for maintenance without system shutdown, minimizing downtime. With SIL 3 certification (IEC 61508), the 3708E meets the highest safety standards, making it a trusted choice for safety instrumented systems (SIS).
2. Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | 8-Channel Analog Input Module |
| Signal Types | 4–20mA, 0–5V, 0–10V, RTD (3/4-wire), Thermocouple (J/K/T/E/R/S/B) |
| Resolution | 16-bit + sign |
| Accuracy | ±0.05% of full scale |
| Channel Isolation | 250V rms galvanic isolation per channel |
| Redundancy | TMR (Triple Modular Redundancy) |
| Power Supply | 24V DC ±10% |
| Operating Temperature | -40°C to 70°C |
| Certifications | SIL 3 (IEC 61508), ATEX, IECEx |
| Dimensions | 178mm (H) x 48mm (W) x 203mm (D) |
| Weight | 1.5 kg |

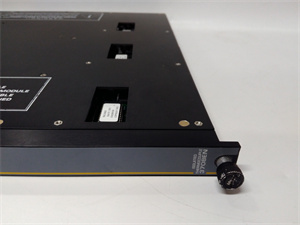

Triconex 3708E
3. Advantages and Features
- TMR Architecture: The 3708E ensures high availability by using three independent signal paths, achieving a diagnostic coverage (DC) of ≥99% and reducing single-point failure risks by 99%.
- Multi-Signal Flexibility: Supports 8 signal types, eliminating the need for multiple modules and reducing inventory costs by up to 30%.
- Hot-Swappable Design: Enables online replacement without system downtime, reducing maintenance time by 60% compared to non-redundant modules.
- Industrial Ruggedness: Withstands vibration (5–500Hz), 冲击 (50g), and extreme temperatures, ensuring reliable operation in offshore platforms and chemical plants.
- Precision and Noise Immunity: 16-bit resolution and galvanic isolation minimize interference, ensuring measurement accuracy in high-noise environments.
4. Application Areas and Case Study
The Triconex 3708E is widely used in:
- Oil and Gas: Monitoring pressure and temperature in refinery reactors.
- Chemical Processing: Acquiring analog signals for emergency shutdown systems (ESD).
- Power Generation: Controlling steam turbine parameters in combined cycle plants.
- Pharmaceuticals: Ensuring precise temperature control in sterile manufacturing environments.
Case Study: A major LNG facility in Qatar integrated the 3708E into its Tricon® SIS to monitor cryogenic tank temperatures. The module’s TMR design and noise immunity reduced measurement errors by 95%, eliminating false ESD trips and saving $1.2M annually in production losses. Its hot-swappable feature also allowed maintenance during operation, avoiding costly plant shutdowns.
5. Competitor Comparison
Compared to similar analog input modules:
- Safety Certification: The 3708E’s SIL 3 rating exceeds many competitors’ SIL 2 capabilities, making it suitable for higher-risk applications.
- Redundancy Depth: TMR architecture provides threefold redundancy, while most alternatives offer dual or no redundancy.
- Signal Integration: Built-in support for RTDs and thermocouples reduces reliance on external signal conditioners, cutting installation costs by 20–30%.
Triconex 3708E
6. Selection Recommendations
- Safety Requirements: Choose the 3708E for SIL 3 systems; opt for lower-rated modules only if safety integrity is not critical.
- Signal Compatibility: Ensure the module supports your sensor types (e.g., Pt100 RTDs or K-type thermocouples).
- Environmental Demands: Prioritize its rugged design for extreme temperatures (-40°C to 70°C) or high-vibration environments.
- Scalability: Consider channel density (8 channels per module) for large-scale systems to optimize cabinet space.
7. Precautions
- Wiring: Use shielded twisted-pair cables for analog signals to minimize EMI interference.
- Grounding: Properly ground the module and field devices to prevent ground loop errors.
- Firmware Updates: Regularly update firmware via Tricon Explorer software to ensure compatibility and security.
- ESD Protection: Handle the module with anti-static wrist straps to avoid damage from electrostatic discharge.
