Description
1. Product Description
Triconex DI6503 is a high-performance digital input module designed by Triconex, a leading brand in industrial automation and safety systems. The DI6503 is engineered to provide reliable and accurate digital input signals in critical control environments, ensuring seamless integration with Triconex’s safety instrumented systems (SIS). This module is built to withstand harsh industrial conditions while delivering precise data acquisition, making it an ideal choice for applications requiring high availability and fault tolerance.
The Triconex DI6503 module is specifically designed to monitor binary inputs from field devices such as switches, sensors, and contactors, converting them into digital signals that can be processed by the control system. Its core functionality includes signal conditioning, isolation, and diagnostics, ensuring that the input signals are reliable and free from noise or interference. The module’s robust design and advanced features make it suitable for a wide range of industries, from oil and gas to chemical processing and power generation.
2. Product Parameters
| Parameter | Details |
|---|---|
| Voltage Range | 24 VDC (nominal), with tolerance of ±10% |
| Input Channels | 16 isolated channels |
| Signal Type | Digital input (dry or wet contacts) |
| Isolation | Galvanic isolation between channels and backplane |
| Diagnostics | Built-in self-test (BIST) for channel and module health |
| Compatibility | Compatible with Triconex TriStation™ software and Tricon CX control platforms |
| Operating Temperature | -40°C to +70°C |
| Certifications | SIL 3 compliant (IEC 61508), ATEX, CSA, and CE certified |

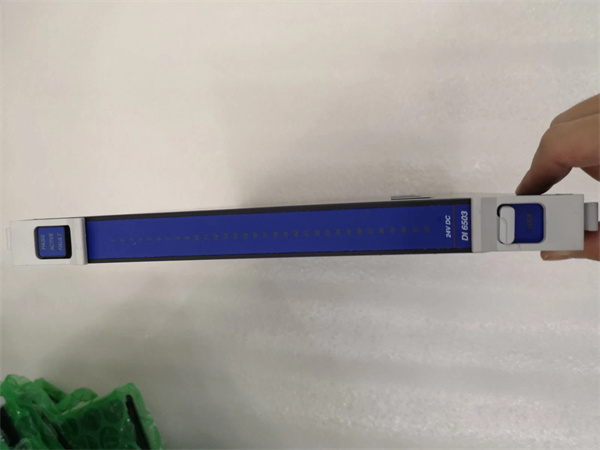

Triconex DI6503
3. Advantages and Features
The Triconex DI6503 stands out for its high reliability and advanced diagnostic capabilities. Each channel features independent galvanic isolation, reducing the risk of cross-channel interference and improving system stability. The module’s triple modular redundancy (TMR) architecture ensures that it can handle single-point failures without compromising system integrity, making it suitable for safety-critical applications.
One of the key features is its hot-swappable design, which allows for module replacement without powering down the system, minimizing downtime and improving maintenance efficiency. The DI6503 also offers comprehensive diagnostics, including channel-level fault detection and reporting, which helps identify and resolve issues quickly. For example, the module can detect open circuits, short circuits, and overvoltage conditions, providing real-time status updates to the control system.
4. Application Areas and Case Studies
The Triconex DI6503 is widely used in industries that require strict safety and reliability, such as:
- Oil and gas production and refining
- Chemical and petrochemical processing
- Power generation (thermal, nuclear, and renewable energy)
- Pharmaceutical and food processing
Case Study: A major petrochemical plant in the Middle East integrated the DI6503 into its Triconex SIS to monitor safety shutdown signals from emergency stop buttons and pressure switches. The module’s TMR architecture and advanced diagnostics helped the plant achieve a 99.99% system availability rate, reducing unplanned downtime by 30% and improving overall operational safety.
5. Competitor Comparison
Compared to similar digital input modules in the market, the Triconex DI6503 distinguishes itself through its SIL 3 certification, triple redundancy, and wide operating temperature range. While many 竞品 (competitive products) offer basic digital input functionality, few match its combination of high-channel density, advanced diagnostics, and rugged design, making it a preferred choice for mission-critical applications.
Triconex DI6503
6. Selection Recommendations
When selecting a digital input module, consider the following:
- Compatibility: Ensure the module is compatible with your existing control system (e.g., Tricon CX platform for the DI6503).
- Safety Requirements: For SIL 3 applications, the DI6503’s certification provides the necessary safety integrity.
- Environmental Conditions: If operating in extreme temperatures or harsh environments, the module’s wide temperature range and rugged construction are critical.
- Maintenance Needs: The hot-swappable feature is essential for systems that require minimal downtime during maintenance.
7. Precautions
- Installation: Follow Triconex’s guidelines for proper grounding and wiring to prevent electromagnetic interference (EMI).
- Maintenance: Regularly review diagnostic reports to identify potential issues before they escalate.
- Software Configuration: Use TriStation™ software to correctly configure channel settings and enable diagnostic features.
