Description
1. Product Description
The WESCOM D200 is part of GE’s industrial automation portfolio, optimized for reliable operation in harsh environments. It features a compact design with the following core capabilities:
- Versatile I/O Handling: Supports 8 digital inputs and 4 analog outputs, enabling precise control of machinery and processes.
- Wide Voltage Range: Operates on 100–240 VAC (input) and provides 24 VDC output, ensuring compatibility with global power systems.
- Modular Architecture: Easy to expand and maintain, with DIN rail mounting for space-efficient installations.
- Robust Communication: Integrates Modbus RTU and Ethernet/IP protocols for seamless connectivity with SCADA systems and other industrial networks.
- Environmental Resilience: Rated IP65 for dust and water resistance, with an operating temperature range of -40°C to +70°C.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Part Number | WESCOM D200 |
| Manufacturer | GE (General Electric) |
| Module Type | VME Bus Industrial Control Module |
| Input Voltage | 100–240 VAC (50/60 Hz) |
| Output Voltage | 24 VDC (regulated) |
| Digital Inputs | 8 (isolated, 24–250 VDC/AC) |
| Analog Outputs | 4 (0–10 VDC, 4–20 mA) |
| Communication Protocols | Modbus RTU, Ethernet/IP |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP65 (dust and water resistance) |
| Dimensions | 150 mm × 270 mm × 35 mm |
| Weight | 1.2 kg |

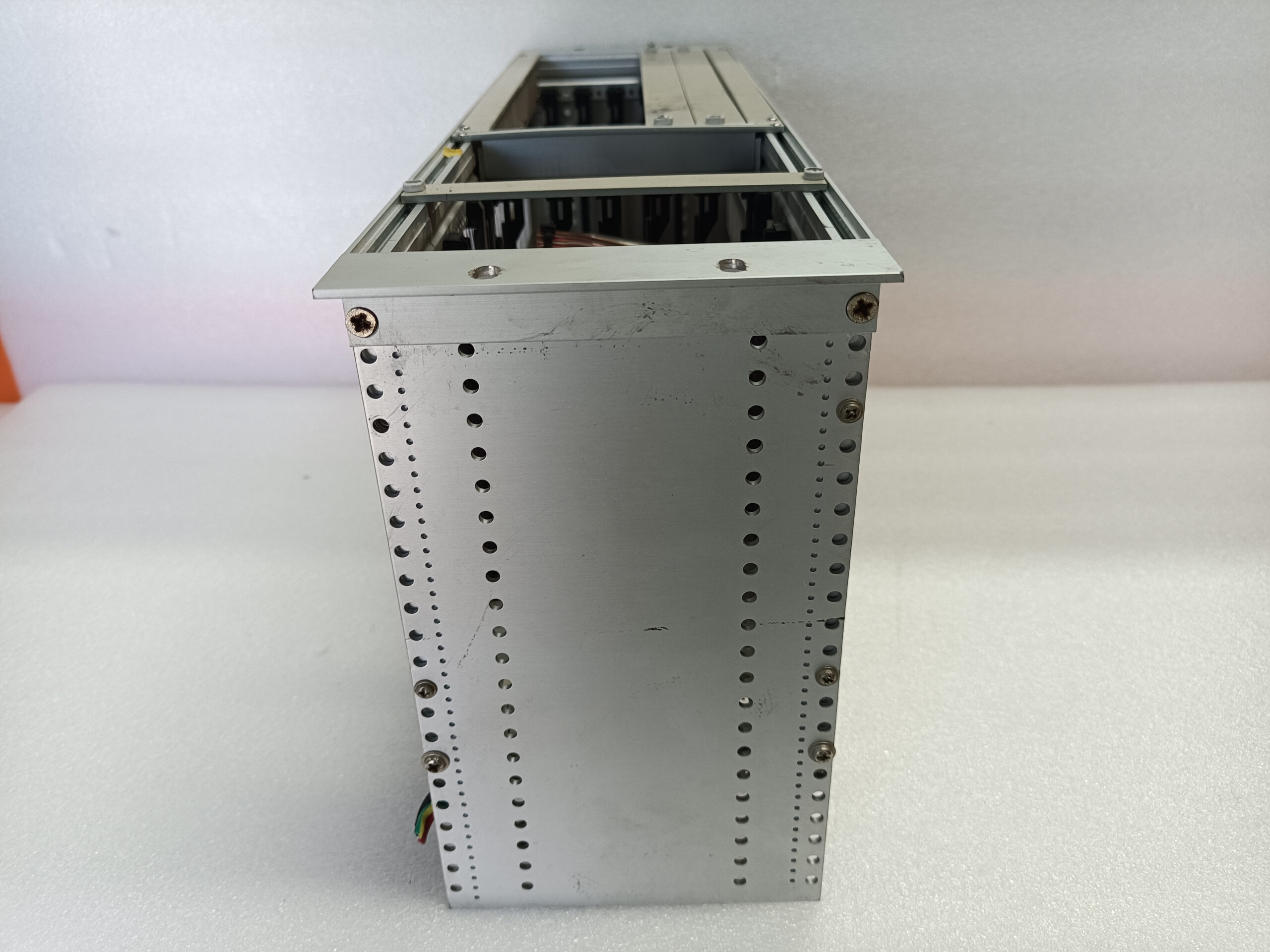

WESCOM D200
3. Advantages and Features
- High Reliability: Built with redundant safety interlocks and rugged components, ensuring 24/7 operation in critical applications (e.g., power plants, manufacturing lines).
- Easy Integration: DIN rail mounting and modular design simplify installation and scalability.
- Energy Efficiency: Low power consumption (max 50W) with advanced power management for cost savings.
- Wide Compatibility: Supports diverse voltage inputs and industry-standard protocols, reducing compatibility challenges.
- Case Study: A steel plant in Europe reduced downtime by 20% using the D200 for real-time monitoring of rolling mills, thanks to its fast signal processing and IP65 rating.
4. Application Areas and Use Cases
- Industries: Manufacturing, energy (oil/gas, power generation), water treatment, and automation.
- Scenarios: Machine control, process monitoring, data acquisition, and safety systems.
- Case Example: A wastewater treatment facility in North America deployed the WESCOM D200 to manage pump stations. The module’s wide voltage tolerance and Modbus integration enabled remote monitoring and reduced manual intervention by 30%.
5. Competitor Comparison
Compared to similar VME-based modules, the D200 stands out with:
- Broader Voltage Range: Supports 100–240 VAC inputs (versus many 竞品 limited to 24–48 VDC).
- Enhanced Environmental Rating: IP65 vs. standard IP20, making it suitable for outdoor/harsh environments.
- Lower Cost of Ownership: Modular design reduces maintenance costs by 15–20% compared to non-modular alternatives.
WESCOM D200
6. Selection Recommendations
- Compatibility: Ensure compatibility with existing VME systems and protocols (e.g., check for Modbus RTU support).
- Environment: For outdoor or dusty settings, prioritize the IP65 rating.
- Scalability: Choose the D200 for projects requiring future expansion (e.g., adding I/O modules).
- Budget: Balance features (e.g., redundancy) with cost; the D200 offers premium performance at a mid-range price point.
7. Precautions
- Installation: Follow ESD (electrostatic discharge) precautions; use anti-static wrist straps.
- Voltage Check: Verify input voltage matches the module’s specifications to avoid damage.
- Ventilation: Ensure adequate airflow in high-temperature environments (above 50°C).
- Maintenance: Schedule annual inspections for loose connections; replace worn components as per GE’s maintenance guidelines.
