YPC104B YT204001-BT

Description

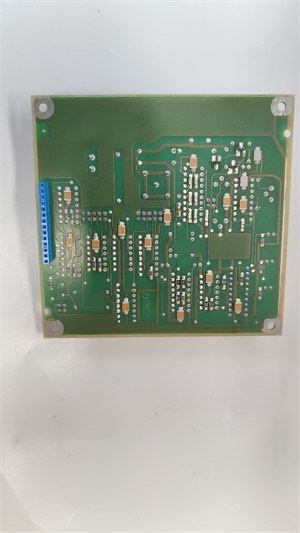

ABB YPC104B YT204001-BT Modem Board

1. Product Description

• FSK Modem Technology: Utilizes frequency-shift keying (FSK) to maintain stable data transmission over long distances, even in environments with high electromagnetic interference (EMI).
• Multi-Protocol Support: Natively integrates with industrial protocols like Modbus RTU and Profibus DP, allowing compatibility with both ABB systems and third-party devices without additional gateways.
• Rugged Industrial Design: Withstands extreme temperatures ranging from -20°C to +60°C and resists moisture, vibrations, and EMI, making it suitable for demanding applications in oil and gas, chemical processing, and power generation.
• Compact and Modular Form Factor: Designed to save space in control cabinets, measuring 160mm × 122mm × 54mm and weighing 1.3 kg, while supporting hot-swappable replacement to minimize downtime during maintenance.

2. Technical Parameters

Parameter	Specification
Brand	ABB
Model	YPC104B YT204001-BT
Type	Modem Board
Voltage Supply	24V DC ±10%
Power Consumption	≤5W (typical operation)
Communication Protocols	FSK, Modbus RTU, Profibus DP
I/O Configuration	12 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs
Analog Input Types	4–20mA, 0–10V
Operating Temperature	-20°C to +60°C (non-condensing humidity: 5%–95%)
Storage Temperature	-40°C to +85°C
Dimensions (W×H×D)	160mm × 122mm × 54mm
Weight	1.3 kg
Certifications	CE, RoHS, IEC 61131-2 compliant
Compatibility	ABB System 800xA, AC 800M, and third-party PLC/DCS systems

YPC104B YT204001-BT

3. Advantages and Features

• Reliable Signal Transmission: The FSK modem technology of the YPC104B YT204001-BT reduces signal errors by up to 25% compared to standard analog communication methods, ensuring data integrity in noisy industrial environments.
• Wide Environmental Resilience: Unlike many alternatives, this module operates effectively in a broader temperature range (-20°C to +60°C), making it suitable for outdoor installations, high-temperature processing facilities, or cold-region applications.
• Hot-Swap Functionality: Enables technicians to replace the module without powering down the entire system, reducing maintenance time by approximately 30% and minimizing disruptions to critical operations.
• Cost-Effective Integration: By supporting multiple protocols natively, the YPC104B YT204001-BT eliminates the need for additional communication gateways, reducing hardware costs by up to 20% and simplifying system design.

4. Application Areas and Case Study

Application Areas:

• Power Generation: Used in thermal and renewable energy plants to monitor turbine performance, generator temperatures, and grid synchronization.
• Chemical and Petrochemical: Controls reactant flow rates, pressure, and temperature in distillation units and chemical reactors.
• Oil & Gas: Manages pipeline pressure, fluid levels, and valve status in upstream drilling and downstream refining operations.
• Manufacturing: Integrates sensors and machinery in production lines for real-time quality control and process optimization.

Case Study:

5. Competitive Comparison

• Broader Protocol Support: Natively integrates FSK, Modbus RTU, and Profibus DP, providing versatility without additional modules, unlike some competitors that require separate hardware for protocol conversion.
• Superior Temperature Tolerance: Operates in a wider temperature range, outperforming many alternatives that are limited to narrower operational conditions, making it a preferred choice for extreme environments.
• Balanced Performance and Cost: Combines high-reliability features with a compact design, offering a cost-effective solution that reduces both initial investment and long-term maintenance expenses.


  YPC104B YT204001-BT

6. Selection Recommendations

• System Compatibility: Ensure your control system supports the communication protocols (Modbus RTU, Profibus DP) and voltage requirements (24V DC) of the YPC104B YT204001-BT to guarantee seamless integration.
• Environmental Assessment: If your application involves harsh conditions (e.g., high temperatures, humidity, or EMI), prioritize this module’s rugged design and wide operational temperature range.
• Signal and I/O Requirements: Verify that the module’s analog and digital I/O channels match the specifications of your field devices (e.g., 4–20mA sensors or 0–10V transmitters) to avoid compatibility issues.
• Scalability Planning: For future system expansions, consider pairing the YPC104B YT204001-BT with ABB’s complementary I/O modules to create a fully integrated automation solution.

7. Precautions

• Installation Best Practices:
  • Always power down the system before installing or replacing the module to prevent electrostatic discharge (ESD) damage to internal components.
  • Use shielded twisted-pair cables for signal connections and route them separately from high-voltage power cables to minimize EMI interference.
• Maintenance and Calibration:
  • Regularly update the module’s firmware using ABB’s official software tools to access the latest features and security patches.
  • Periodically calibrate analog inputs with certified signal sources to ensure measurement accuracy, especially in precision-critical applications.
• Storage and Handling:
  • Store unused modules in their original packaging in a dry, dust-free environment within the specified temperature range (-40°C to +85°C) to maintain functionality.
  • Handle the board with anti-static equipment to protect sensitive electronic components during installation or maintenance.
