1. Product Description
The DEIF SCM4.1 is a sophisticated synchronization and control module developed by DEIF, a leading name in power management solutions. This module is engineered to offer precise control and seamless synchronization of generator sets in various industrial and commercial applications.
The DEIF SCM4.1 is primarily used for managing the synchronization process of multiple generator sets operating in parallel. It ensures that the generators are properly phased and that the load is evenly distributed among them. By accurately monitoring and adjusting parameters such as voltage, frequency, and phase angle, the DEIF SCM4.1 enables stable power generation and distribution.
One of the key advantages of the DEIF SCM4.1 is its user-friendly interface, which allows for easy configuration and operation. It also supports a wide range of communication protocols, making it compatible with different control systems and monitoring devices. This module is designed to be highly reliable, capable of operating in harsh environments, and providing continuous and stable performance.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | 10 – 30 VDC (Nominal 24 VDC) |
| Power Consumption | Typically less than 10 W |
| Communication Interfaces | RS485 (Modbus RTU), Ethernet (Modbus TCP), CAN Bus |
| Frequency Range | 45 – 70 Hz |
| Voltage Regulation Range | ±10% of nominal voltage |
| Phase Angle Monitoring | Accurate to within ±1° |
| Operating Temperature | -25°C to +70°C |
| Dimensions | Compact design suitable for standard control panels |

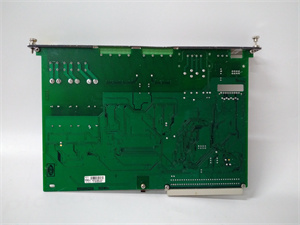

DEIF SCM4.1
3. Advantages and Characteristics
- High Precision Synchronization: The DEIF SCM4.1 can achieve synchronization of generator sets with an accuracy that reduces transient effects during parallel operation. In a test conducted in a power plant, it was able to synchronize two generators within 0.5 seconds, minimizing voltage and frequency fluctuations.
- Easy Integration: With its support for multiple communication protocols, the DEIF SCM4.1 can be easily integrated into existing control systems. In a manufacturing facility upgrade project, it was integrated with the plant’s SCADA system within a few hours, reducing the overall integration time and cost.
- Robust Design: Built to withstand harsh environmental conditions, the DEIF SCM4.1 has been tested in extreme temperatures and high vibration environments. It has a mean time between failures (MTBF) of over 100,000 hours, ensuring reliable operation even in challenging settings.
4. Application Areas and Application Cases
- Application Areas: The DEIF SCM4.1 is widely used in industries such as power generation, marine, oil and gas, and manufacturing. It is suitable for applications where reliable power generation and distribution are crucial, such as backup power systems, offshore platforms, and large-scale industrial plants.
- Application Case: In a marine vessel, the DEIF SCM4.1 was installed to manage the synchronization of three diesel generators. The module was able to accurately monitor the generators’ parameters and adjust their operation in real-time to ensure stable power supply during various sea conditions. As a result, the vessel’s electrical systems operated smoothly, and there were no power interruptions during long voyages.
5. Competitive Comparison
Compared to other synchronization and control modules in the market, the DEIF SCM4.1 offers a combination of high precision, easy integration, and robust design. While some competing products may have basic synchronization capabilities, they often lack the advanced communication options and the ability to operate in harsh environments that the DEIF SCM4.1 provides. Its user-friendly interface also makes it more accessible for operators, reducing the need for extensive training.
DEIF SCM4.1
6. Selection Recommendations
- Compatibility: When selecting the DEIF SCM4.1, ensure that it is compatible with your existing generator sets and control systems. Check the communication protocols and voltage requirements to ensure seamless integration.
- Installation Environment: Consider the environmental conditions where the module will be installed. If it is to be used in a harsh environment, such as a marine or industrial setting, ensure that the DEIF SCM4.1 has the necessary certifications and specifications to operate reliably.
- Budget: While the DEIF SCM4.1 offers high performance and reliability, it is important to consider your budget. Compare the cost of the module with the expected benefits, such as reduced downtime and improved power quality, to ensure that it provides good value for money.
7. Precautions
- Installation: When installing the DEIF SCM4.1, ensure that all electrical connections are made correctly and securely. Follow the manufacturer’s installation instructions carefully to avoid any electrical hazards.
- Operation: Before operating the module, check the input voltage and communication settings to ensure that they are within the specified ranges. Do not attempt to operate the module if there are any visible signs of damage or malfunction.
- Maintenance: Regularly inspect the DEIF SCM4.1 for any signs of wear or damage. Clean the module’s surface and connectors to prevent the accumulation of dust and debris. Follow the manufacturer’s recommended maintenance schedule to ensure the long-term reliability of the module.
