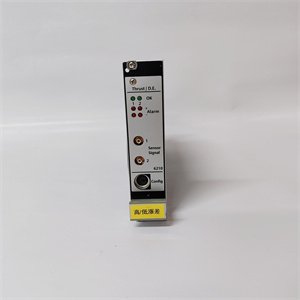

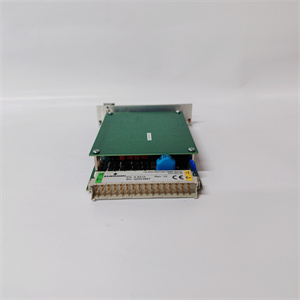

Emerson A6210

Description

Core Functions and Applications

1. Thrust Position Monitoring:
   • Tracks axial shaft displacement in turbomachinery (e.g., turbines, compressors) to prevent rotor-to-case contact.
   • Resolves movements as small as ±0.001 mm, using eddy current sensors to detect sudden shifts that could lead to catastrophic failures.
2. Differential Expansion Monitoring:
   • Measures thermal growth differences between turbine casings and rotors during start-up/shutdown cycles.
   • Supports tandem/complementary or cone/ramp modes to adapt to varying temperature fluctuations in power plants and industrial facilities.
3. Rod Position Monitoring:
   • Detects piston rod wear in reciprocating compressors by monitoring rider band movement.
   • Enables predictive maintenance by alerting operators to early-stage wear, reducing unplanned downtime.

Technical Specifications

Parameter	Value
Input Type	Eddy current differential
Channels	2 independent
Sensor Compatibility	Emerson 6422, 6423, 6424, 6425
Voltage Range	24 VDC ±10%
Measuring Frequency	0–8 Hz (10 Hz, -3 dB)
Isolation	Galvanic separation from power supply
Response Time	<40 ms for thrust position
Environmental Rating	IP20 (front panel), IP00 (module)
Operating Temperature	0°C to 65°C
Dimensions	16 cm × 16 cm × 12 cm
Weight	0.8 kg

EMERSON A6210

Key Features

1. Multi-Mode Flexibility:
   • Combines three critical monitoring functions in one module, reducing hardware complexity and installation costs.
   • Supports API 670 compliance for machinery protection in high-risk environments.
2. Reliability and Safety:
   • Dual-channel redundancy with voting logic for SIL 3-rated safety systems.
   • Real-time self-diagnostics for hardware health, power supply, and sensor integrity via front-panel LEDs.
3. Ease of Integration:
   • Hot-swappable design allows maintenance without system downtime.
   • Seamless compatibility with Emerson’s AMS 6500 Machinery Health Monitor, DeltaV™, and Ovation™ DCS systems via MODBUS or OPC-UA.
4. Advanced Signal Processing:
   • PeakVue Technology enhances detection of early-stage bearing defects and impacts in noisy environments.
   • Built-in linearization algorithms optimize sensor accuracy post-installation.

Industry Applications

• Power Generation:
  Monitors turbine thrust bearings and differential expansion in coal/gas-fired plants to prevent rotor-stator collisions.
• Oil & Gas:
  Detects rod wear in reciprocating compressors and ensures safe operation of turbomachinery in offshore platforms.
• Manufacturing:
  Tracks piston rod position in injection molding machines and presses to avoid equipment damage.

Competitor Comparison

• Multi-Functionality: Combines thrust, expansion, and rod monitoring in a single module.
• Temperature Range: Operates reliably at 0–65°C, compared to 0–50°C for some competitors.
• Integration: Native compatibility with Emerson’s AMS 6500 system reduces engineering effort.


  EMERSON A6210

Selection and Maintenance

• System Compatibility: Verify compatibility with AMS 6500 controller versions and existing sensor infrastructure.
• Environmental Conditions: Ensure IP20 rating and 0–65°C temperature range suit the installation environment.
• Redundancy Needs: For SIL 3 applications, consider the A6250 triple-redundant module.
• Calibration: Perform periodic calibration using Emerson’s AMS Machinery Manager software.
