TRICONEX 3625C1

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Module Type	Digital Output Module
Nominal Voltage	24VDC
Output Signals	32 points, common type
Voltage Range	16 – 32VDC
Maximum Voltage	36VDC
Power Consumption	Less than 13W
Rated Current	7A surge per point every 10ms, maximum 1.7A, minimum required load 10mA, load leakage maximum 4mA
Point Isolation	1500VDC
Operating Temperature	-40°C to +70°C
Storage Temperature	-50°C to +85°C
Humidity Resistance	5% – 95% non-condensing
Compatibility	TRICONEX control systems and related products

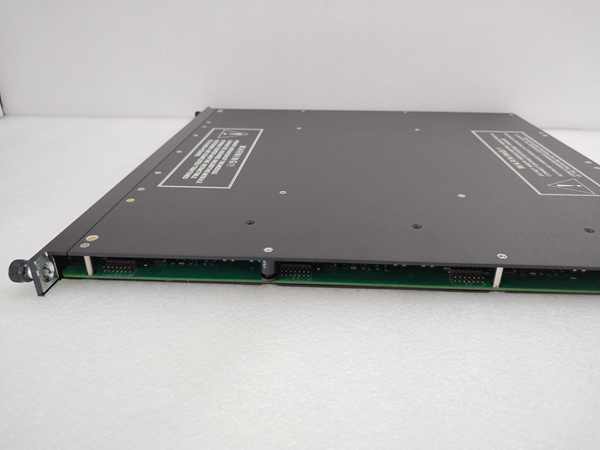

TRICONEX 3625C1

3. Advantages and Characteristics

• High Reliability: The TRICONEX 3625C1 utilizes TMR technology, which significantly enhances its reliability. The mean time between failures (MTBF) is extremely high, exceeding 250,000 hours, reducing the likelihood of unplanned system shutdowns. For example, in a large petrochemical plant, even when one of the internal components of the TRICONEX 3625C1 module failed due to electrical interference, the TMR technology allowed the module to continue operating without any interruption, ensuring the continuous operation of the production process.
• Powerful Diagnostic Function: With diagnostic indicator lights for various statuses, the module enables quick fault identification. In a manufacturing facility, when a fault occurred in one of the output channels, the indicator lights immediately showed the fault status, allowing maintenance personnel to quickly locate and resolve the problem, reducing the downtime of the production line by up to 50%.
• Ease of Integration: Its compact design and compatibility with other TRICONEX products make it easy to integrate into existing control systems. In an industrial automation project, the TRICONEX 3625C1 was easily integrated with other TRICONEX modules, saving a significant amount of time and effort in system configuration.
• Wide Operating Temperature Range: The module can operate in a wide temperature range from -40°C to +70°C, making it suitable for use in harsh industrial environments, such as offshore platforms and high-temperature processing plants.

4. Application Areas and Application Cases

• Industry Applications:
  • Industrial Automation: Used to control motors, valves, and other equipment in automated production lines, enabling precise control and optimization of the production process.
  • Process Control: Applied in industries such as chemical, oil and gas, and power generation to control process parameters, ensuring the safety and stability of the production process.
  • Power Systems: Used for switch control and protection devices in power systems, ensuring the reliable operation of the power grid.
  • Manufacturing: Applicable in various manufacturing industries, such as automotive manufacturing and machinery processing, to achieve precise control of equipment and optimization of production processes.
  • Other Fields: Also used in building automation, environmental monitoring, the pharmaceutical industry, and the food and beverage industry to meet different control needs.
• Case Study: In a large chemical plant, the TRICONEX 3625C1 was used to control the opening and closing of chemical valves in a production process. The module’s high reliability and accurate control ensured that the chemical flow was precisely regulated, preventing any potential safety hazards caused by incorrect valve operation. The diagnostic function of the module also allowed for quick detection and resolution of any issues that occurred during operation, ensuring the continuous and stable operation of the production line.

5. Competitive Comparison

Compared to similar digital output modules in the market, the TRICONEX 3625C1 stands out due to its combination of high reliability, powerful diagnostic capabilities, and ease of integration. Many competing products may not offer the same level of redundancy, which makes them more vulnerable to component failures and system downtime. Additionally, the TRICONEX 3625C1‘s wide operating temperature range and comprehensive diagnostic features are not commonly found in other modules, giving it an edge in harsh industrial environments and complex control systems.

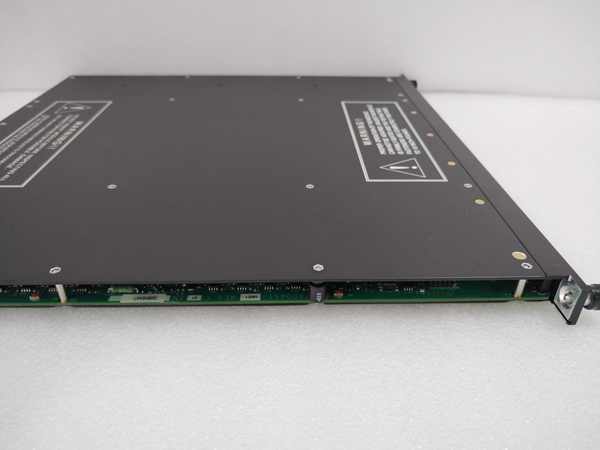

TRICONEX 3625C1

6. Selection Recommendations

• System Compatibility: Ensure that the TRICONEX 3625C1 is compatible with your existing control system, including other modules and software. Check the communication protocols and interface requirements to ensure seamless integration.
• Installation Environment: Consider the operating temperature, humidity, and other environmental factors of the installation site. If the environment is harsh, make sure the module can withstand these conditions.
• Output Requirements: Determine the number and type of output channels you need, as well as the power requirements of the connected devices. Ensure that the TRICONEX 3625C1 can meet these requirements.
• Budget Considerations: While the TRICONEX 3625C1 offers high performance and reliability, it is also important to consider your budget. Compare the cost of the module with its features and benefits to ensure you are getting the best value for your investment.

7. Precautions

• Installation: When installing the TRICONEX 3625C1, follow the installation instructions carefully to ensure proper wiring and grounding. Use anti-static wristbands to prevent damage to the module from electrostatic discharge.
• Wiring: Double-check the wiring connections to ensure they are correct and secure. Incorrect wiring can lead to incorrect operation or damage to the module.
• Maintenance: Regularly inspect the module for any signs of damage or malfunction. Check the indicator lights to ensure the module is operating normally. Update the module’s firmware as recommended by the manufacturer to ensure optimal performance and security.
• Load Management: Do not exceed the rated current and voltage of the module. Ensure that the connected devices are within the load capacity of the module to prevent overloading and damage.
